Certainly! Here's the translation of the provided Markdown document:

Hello, welcome to the ticket SDK. Below provides basic usage, notes, parameter descriptions, method descriptions, event descriptions, related examples, etc.

Basic Usage

Step 1: Configure SDK

Log in to the Udesk customer service system administrator account, go to Admin Center -> Channel Management -> Ticket SDK, and configure the basic properties.

Step 2: Call SDK

Copy the code from the basic information to the bottom of the webpage, modify the configuration parameters information, and call the corresponding method to use the SDK.

Effect Examples

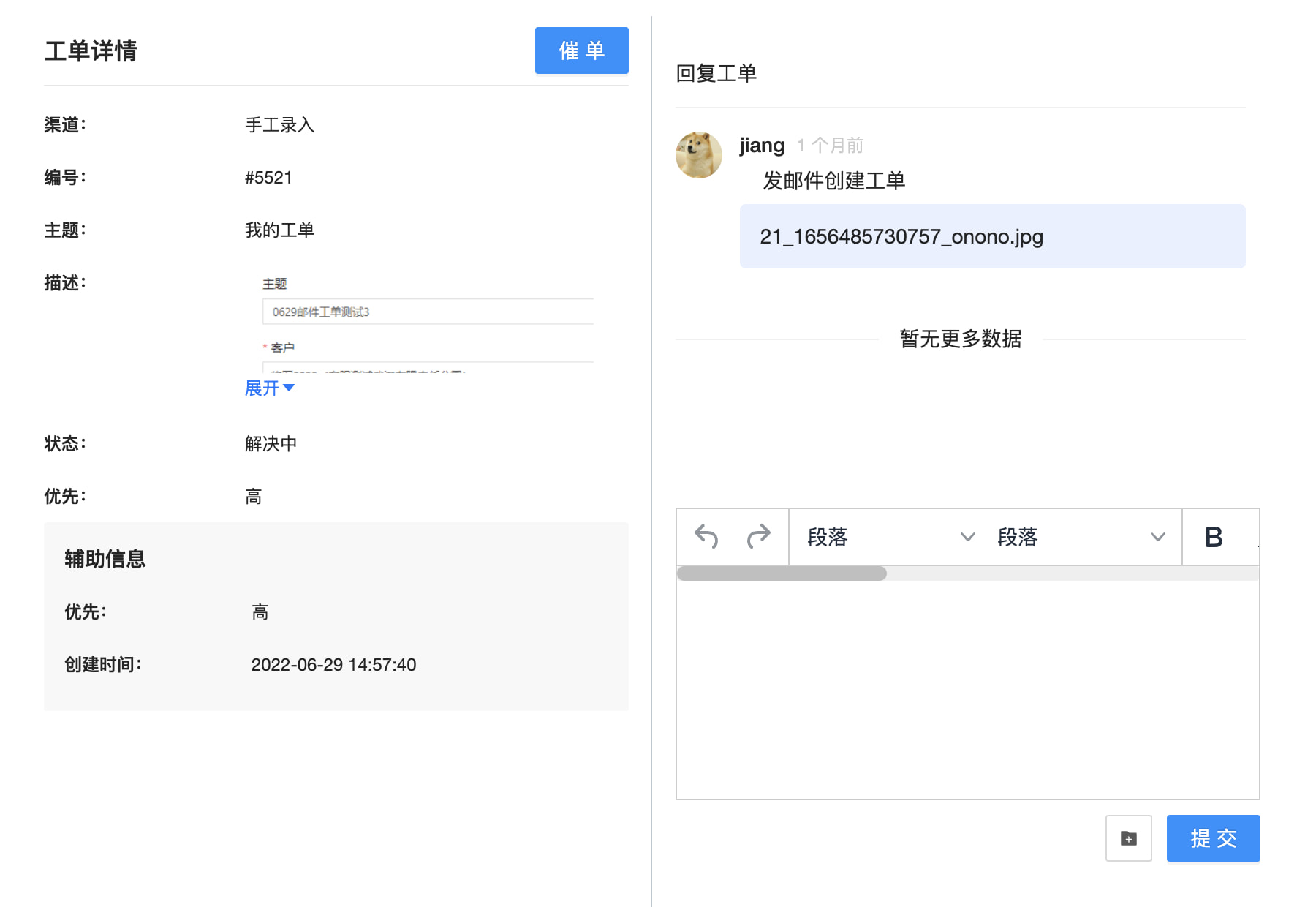

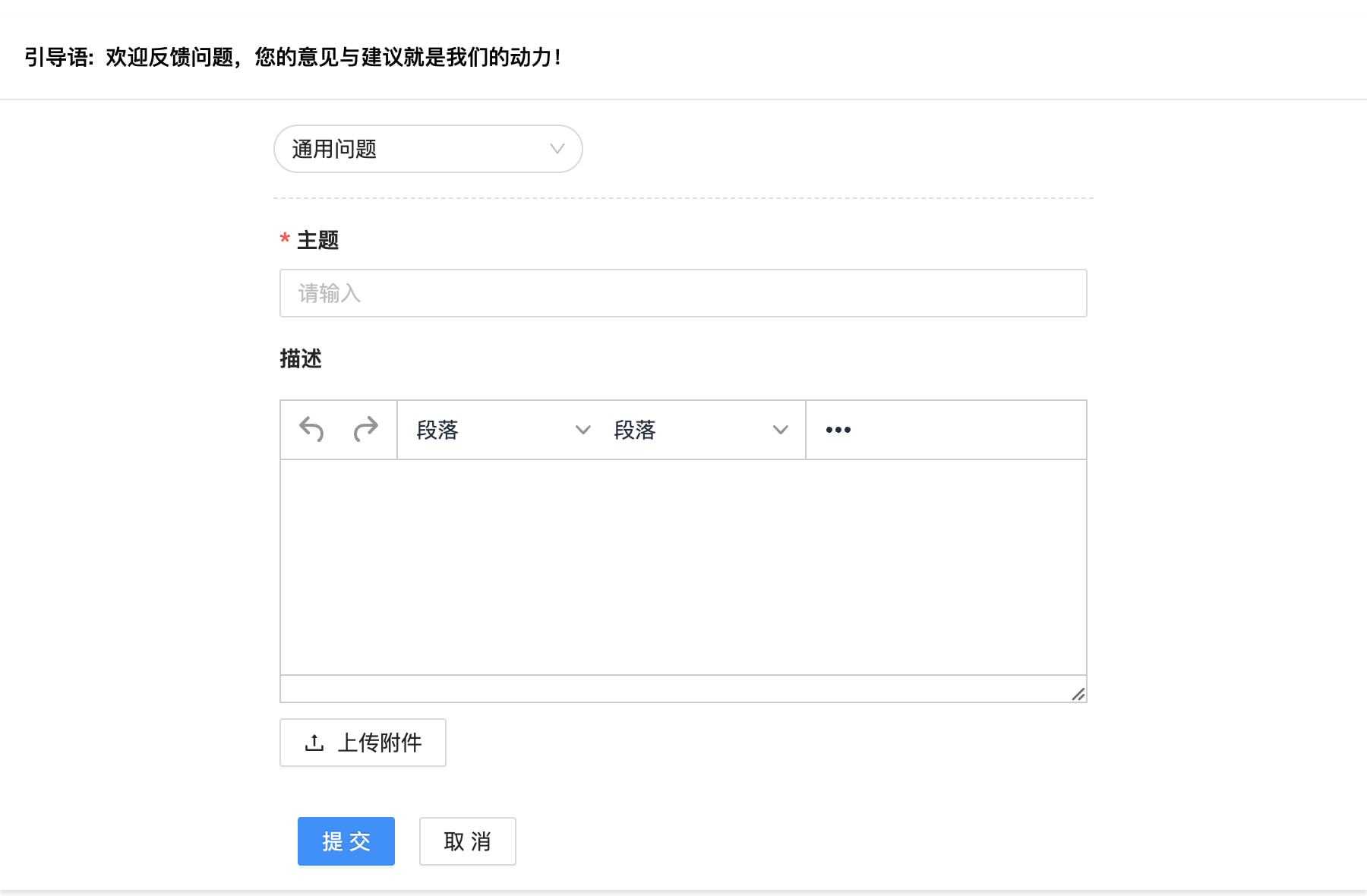

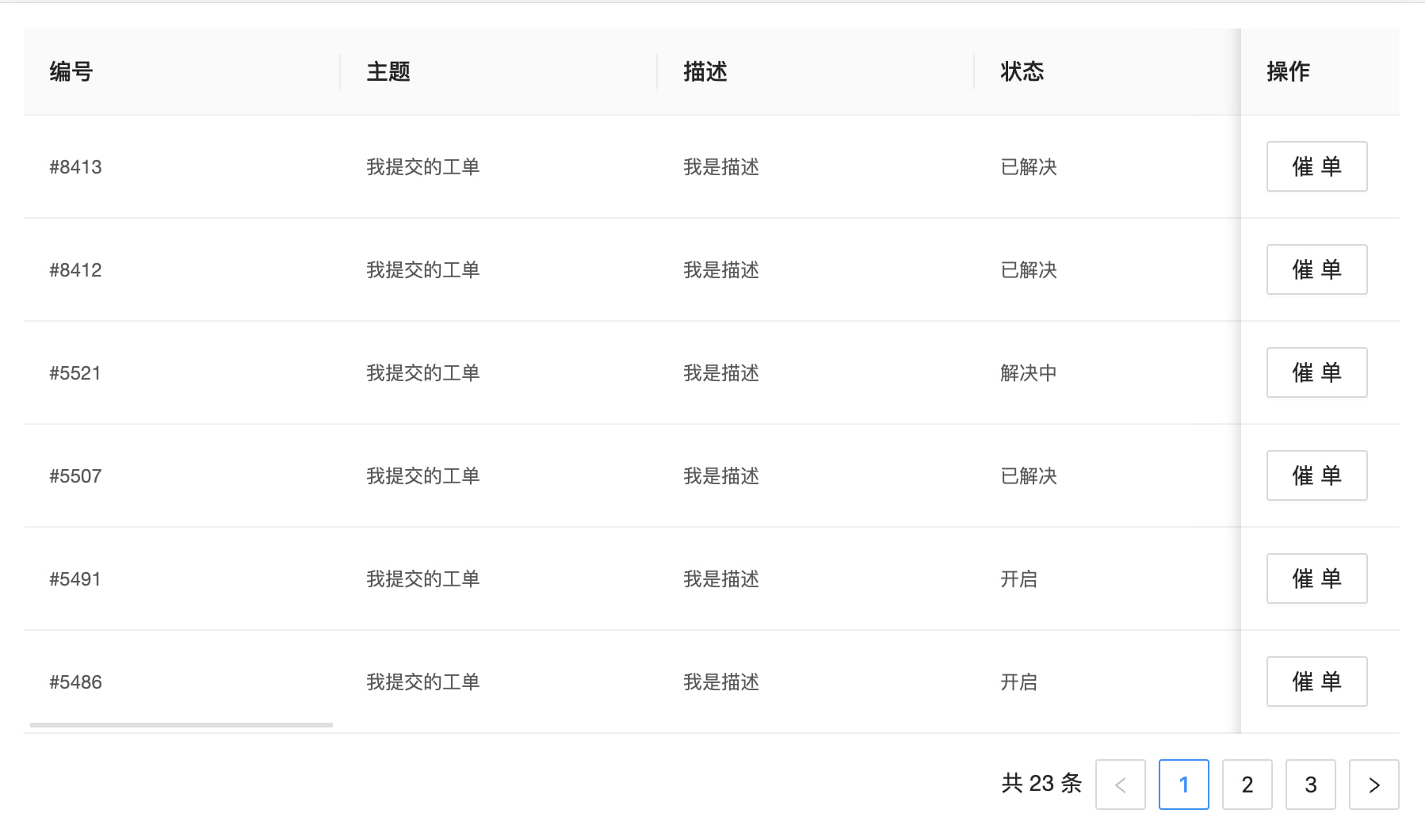

Desktop

udesk

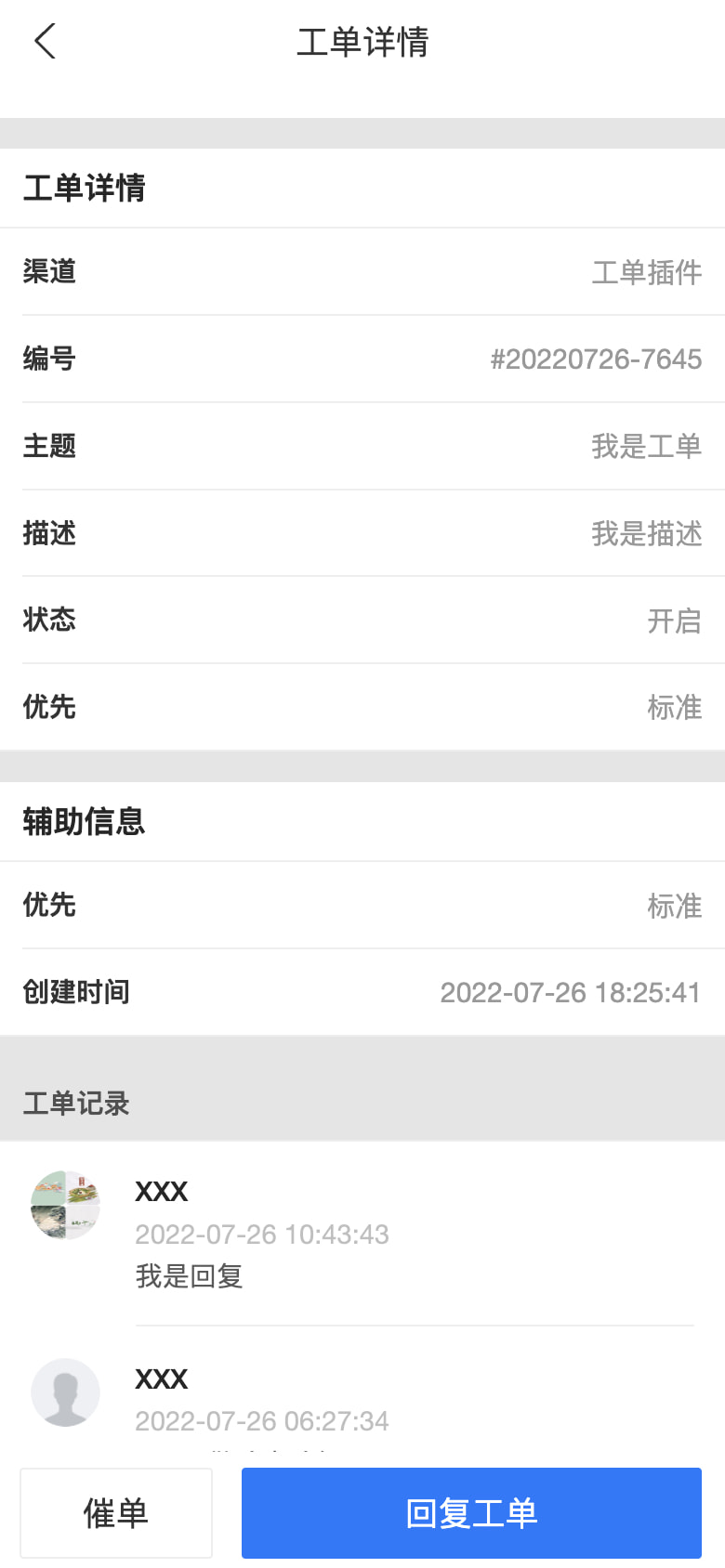

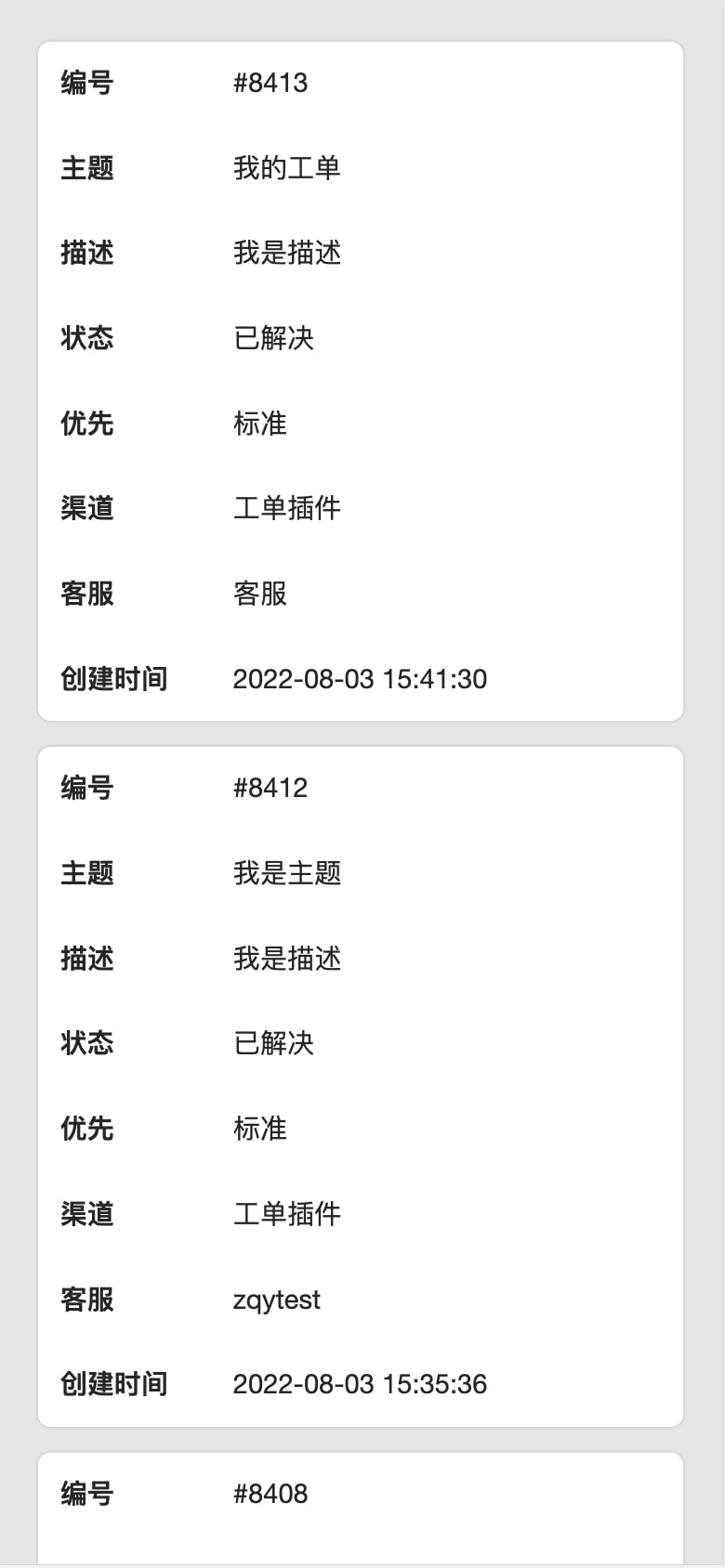

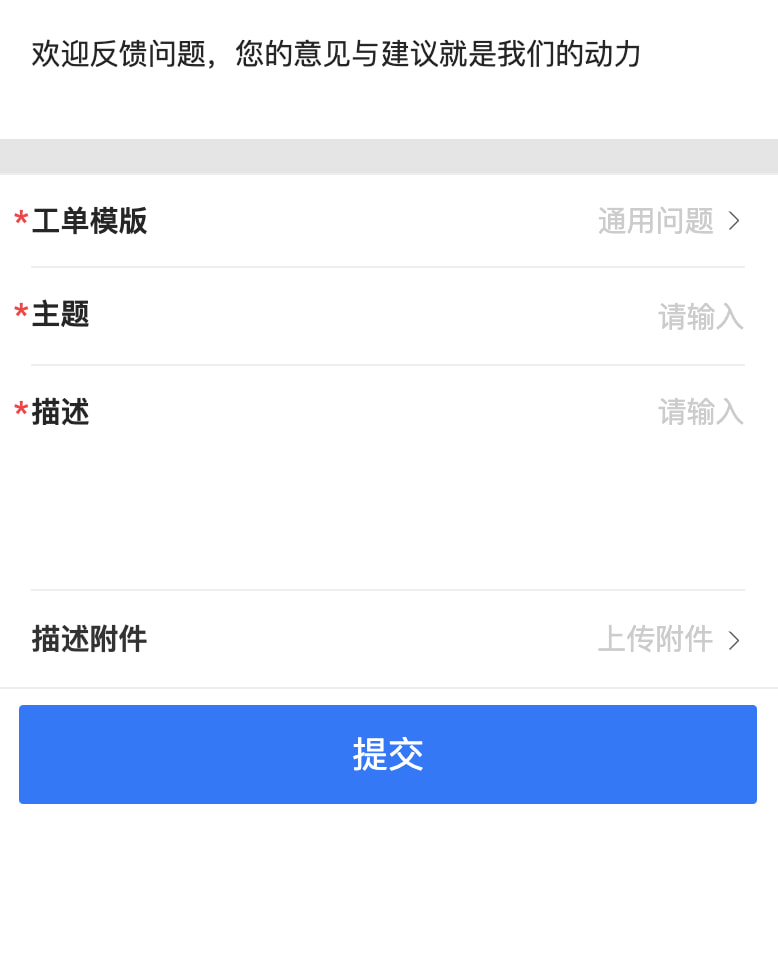

Mobile

udesk

Notes

Device Support

The ticket SDK currently supports PC/Android (including tablets)/iOS (including tablets) and other devices.

Browser Support

Currently supports mainstream browsers (Edge / Chrome / Firefox / IE 11...)

If possible, it is recommended to upgrade to use mainstream browsers for the best user experience.

Basic Examples

Embedded Code Example

<body>
    <!-- Webpage content. Please copy the specific code from the administrator ticket SDK plugin -->

    <script>
    (function() {
      var token = "" + (token = new Date()).getFullYear() + token.getMonth() + token.getDate();

      var scriptDom = document.createElement("script");
      scriptDom.src = "https://assets-cli.udesk.cn/ticket_sdk/ticket_sdk.js?t="+token;
      document.body.appendChild(scriptDom);

      var styleDom = document.createElement("link");
      styleDom.rel = "stylesheet";
      styleDom.href = "https://assets-cli.udesk.cn/ticket_sdk/ticket_sdk.css?t="+token;
      document.body.appendChild(styleDom);

      scriptDom.addEventListener('load', function() {
          var udesk = UdeskSDK.ticketSDK.init({
              // [Required] Must provide subdomain.
              subdomain:'your subdomain',
              // [Required] Must provide client appId.
              appid:'f840xxxxxx5f868e',
              // [Required] Must provide signature.
              signature: 'your signature',
              // [Required] Must provide type.
              type:'content type',
              // [Required] Must provide content.
              content:'content',
              container:'sdk'
          });
          // Your code goes here...
          udesk.create({
            type:'new'
          })
      }, false);
  })();
    </script>
</body>

Custom Configuration

Initialize Global Parameters

Parameter Name	Type	Value	Required	Description
subdomain	String	Domain	Required	Company's full domain name
appid	String	System-generated	Required	Unique identifier of the ticket plugin in the SDK
signature	String	Signature encryption string	Required	Signature required for SDK authentication, details
type	String	token/email/cellphone/weixin/qywx	Required	Type of value range
content	String	Type value	Required	Corresponding value for the type, used for calculating signature
position	Object	{ position: absolute, right: 0; bottom: 0 }	Optional	The docking position of the ticket plugin relative to the container, specify relative or absolute positioning. In absolute positioning, you can also specify the position information of top, bottom, left, and right: { position: relative/absolute; left: 0, right: 0, top: 0, bottom: 0 }
height	String	100%	Optional	Configure custom SDK height
width	String	100%	Optional	Configure custom SDK width
theme	String	"default"	Optional	Configure custom SDK theme. Note that this plugin does not provide built-in multiple themes. You can set multiple themes according to your needs and switch through this property.
lang	String	ZH-CN/EN-US	Optional	Configure SDK internationalization language settings, default language is Chinese.
defaultFormData	Object	{ textField_id: 'Ticket subject', selectField_id: 'Text field' }	Optional	Set additional fields when submitting tickets. These fields will be uploaded together with the ticket fields. If there is a conflict with the ticket fields, this field will override the value entered in the ticket field.
defaultUserData	Object	{ cellphone: '123123131231', email: 'yao@udesdsdfsf.com'}	Optional	Set additional customer fields when submitting tickets. These fields will be uploaded together with the customer fields. If there is a conflict with the customer fields, this field will override the value entered in the ticket field.
snapshot	Boolean	false	Optional	Enable ticket screenshot function
snapshotOption	Object	{ useCORS: true, allowTaint: false }	Optional	Screenshot function configuration parameters

defaultFormData can be used to set values for certain fields in the ticket that do not exist, and will be submitted along with the ticket fields. If there is a conflict with the ticket fields, the values in defaultFormData will take precedence over those entered in the ticket interface.

defaultUserData When customer email and phone number fields are submitted and conflict with signature authentication parameters, the signature authentication takes precedence.

The customer parameters involved in defaultUserData are: email (customer email field), cellphone (customer phone number field), name (customer name field), organization (customer company field), SelectField_id and TextField_id (customer custom field unique identifier, can be viewed in custom fields). All of these field types are String.

defaultUserData Example

defaultUserData:{
    cellphone:  '123123131231',
        email:      'yao@udesdsdfsf.com',
        nick_name:  'Ten Thousand Bottles',
        organization: 'Ten Thousand Bottles',
        TextField_325: 'Multiline Text',
        SelectField_189: '0',
        SelectField_185: '0',
        TextField_321: 'https://www.baidu.com',
        TextField_317: '123',
        TextField_313: '42342',
        TextField_309: '2017-01-01 00:00',
        TextField_305: '12:00:00',
        TextField_301: '2016/01/01',
        SelectField_177: '0',
        TextField_297: 'customer field',
}

Initialize Signature Authentication Algorithm

Customer identity authentication. The SDK first needs to do customer identity authentication. For authentication, refer to the parameters and signature encryption algorithm below. Token, cellphone, email, weixin, qywx must fill in one of them.

Types and Content Parameter Descriptions

Parameter Name	Type	Value	Required	Description
appid	String	Generated	Yes	Unique identifier of the ticket plugin in the SDK
token (Type)	String	customer_token	No	Customer identifier
cellphone (Type)	String	cellphone	No	Customer's primary phone number
email (Type)	String	email	No	Customer's primary email address
weixin (Type)	String	contact_weixins.openid	No	WeChat appid + "#" + openid
qywx (Type)	String	contact_qywx.openid	No	Enterprise WeChat appid + "#" + openid

Signature Algorithm

Username: appid&type&content
Algorithm: SHA256(username + "&" + appkey)

Note:

Signature calculation should be done on the server side

If the customer does not exist, it will be automatically created

Initialize Instance Code

var udesk = UdeskSDK.ticketSDK.init({
    appid: "XXXXXXX-XXXXXXXXXXX-XXXXXXXX-XXXXXX",
    signature: "XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX",
    type:"xxx"
    content:"xxx",
    subdomain: "xxxx",
    position: {
        position: "relative"
    },
    height: "100%",
    width: "100%",
    theme: "default",
    lang: "ZH-CN"
});

Screenshot Function and Configuration Parameters

When the snapshot in the global parameters is set to true, the screenshot function is enabled. It will display a "Screenshot" button after the "Upload Attachment" button. Clicking the "Screenshot" button will capture the current page document.body and pop up an image editing modal. After confirmation, the screenshot will be uploaded and displayed in the attachment list. The screenshot function is based on html2canvas.

Note:

Requires browsers compatible with canvas. If not compatible, the "Screenshot" button will not be displayed. Not supported on mobile devices.

This function captures document.body and does not support specifying the capture object.

The position of the image editing modal is full-screen floating position: fixed; z-index: 9999; min-width: 600px; rendered at the bottom of the body, occupying 80% of the current screen, positioned in the center of the screen. Minimum width is 600px and does not respond to drag or adaptivity.

snapshotOption Screenshot Parameter Explanation

Parameter Name	Type	Value	Description
useCORS	Boolean	false	Whether to enable CORS for rendering images
allowTaint	Boolean	false	Whether to allow canvas pollution
scale	Number	2	Scale level when rendering tags
ignoreElements	Function	HTMLElement => Boolean	Tags to be filtered during rendering. The callback function parameter is the current rendered DOM tag. When the function returns `true`, this tag will be skipped. When it returns `false` or does not return, the tag will continue to be rendered.
beforeSnap	Function	() =>	Callback function before taking screenshots. Returns `false` to terminate
afterSnap	Function	() =>	Callback after screenshot, before the image editing modal pops up

Note:

Except for beforeSnap and afterSnap, other parameters are consistent with html2canvas configuration parameters.

Other html2canvas configuration parameters are also supported.

Screenshot Cross-Origin Configuration Transmission

For example, when there is cross-origin on the image server, passing useCORS: true and allowTaint: true is sufficient. When snapshotOption parameters are not passed, the default configuration within the ticket is as follows:

const snapshotOption = {
    useCORS: true,
    allowTaint: false
}

This configuration requires the image server to configure Access-Control-Allow-Origin. If necessary, set the Img tag crossorigin='anonymous' (see MDN CORS-enabled image).

Method Descriptions

Method Name	Parameter	Description
create	{type:"xxx"}	This method is used to generate ticket-related pages. The optional values for parameter type are: new/list/detail, where detail requires ticketId to be passed. Example: udesk.create({type:"detail",ticketId:1})
hide	String	Hide the corresponding type of component rendered. Optional values for parameters are: new/list/detail. Leave it blank to hide all components.
show	String	Show the corresponding type of hidden component. Optional values for parameters are: new/list/detail. Show all hidden components.
destroy	String	Destroy the corresponding type of component rendered. Optional values for parameters are: new/list/detail. Leave it blank to unregister all components.

Detailed Explanation of the create Method

Parameter Description

Parameter Name	Type	Value	Required	Description
type	String	new/list/detail	Yes	Generate corresponding ticket page
mode	String	web/mobile	Yes	Generate ticket page rendering mode
ticketId	Number	Number	No	Required when type is detail, ticketId is required
container	Element/String	[Element body]	No	Default container body node. Can set id value and DOM object. (Will override the container value in init)
height	String	"100%"	No	Configure the height of the instantiated form (will override the height in init)
width	String	"100%"	No	Configure the width of the instantiated form (will override the width in init)
position	String		No	Configure the positioning style of the instantiated form (will override the positioning style in init)
classNames	String	"test"	No	Configure the class of the instantiated form (will override the height in init)

newTicket Method Explanation

After calling udesk.create({ type:'new' }) method, udesk object will create the corresponding ticket object udesk.newTicket for ticket field recording and uploading. udesk.newTicket object provides the following methods:

Method Name	Parameter	Description
setDefaultFormData		Set additional fields when submitting tickets. Through this method, you can programmatically attach some additional fields when submitting new tickets. This method is very useful when submitting UI-invisible field values. The parameters are the same as [defaultFormData]

The setDefaultFormData method accepts an object and uses this object to override the defaultFormData field in the init method configuration. Calling this method will invalidate the defaultFormData field configured in the init method.

Using Instances

    // New ticket
    udesk.create({
        type: 'new',
        mode: 'web',
        classNames:'subdomain-ticket-sdk',
        container: 'sdk_new'//Container id value,
        height: "100%",
        width: "100%",
        position: {
            position: "relative"
        },
    });
    // Ticket detail
    udesk.create({
        type: 'detail',
        mode: 'web',
        ticketId: 10,
        classNames:'subdomain-ticket-sdk',
        container: 'sdk_detail'//Container id value,
        height: "100%",
        width: "100%",
        position: {
            position: "relative"
        },
    });

Upgrade Guide

// Note: Save the current domain address you are using. Here is an example with https://assets-cli.udesk.cn
// Step 1: Change the reference address of js and css

".../ticket_js_sdk/1.0.1/js/sdk.min.js"
// js file changes to
".../ticket_sdk/ticket_sdk.js"

".../ticket_js_sdk/1.0.1/js/sdk.min.css"
// css file changes to
".../ticket_sdk/ticket_sdk.css"

// Step 2: Remove the reference to Jquery

// Step 3: Add rendering mode
udesk.create({
    mode: 'web' // web: PC rendering mode, mobile: mobile rendering mode
})

API Invocation Capability Guide

In special cases, you may need to implement customized interfaces. In this case, you need to use the SDK API to obtain or submit the corresponding data.

Method Name	Parameter	Description
getConfig		Get ticket configuration
getTicketFormConfig	(id: number)	Get the configuration of the ticket template
saveTicket	(data)	Submit ticket, dataparameter description
uploadAttachment	(file)	Upload attachment
getTicketList	({ page: number, status_id?: string, desc?: string })	Get information about submitted tickets
getTicketDetail	(id: number)	Get ticket details
remindTicket	(id: number)	Send a reminder for the ticket
getTicketReplies	(id: number, { page: number })	Get ticket reply information
postTicketReplies	(id: number, { reply: { attachment_ids: number[], content: string, content_type: 'text' }})	Submit reply information for ticket

// Example:
const SDKRequest = udesk.request();
// Get ticket configuration
SDKRequest.getConfig().then((res) => {
    console.log(res)
})
// Get ticket template with id 29
SDKRequest.getTicketFormConfig(29).then((res) => {
    console.log(res)
})
// Upload attachment interface
const fileDom = document.getElementById('test_file');
fileDom.addEventListener('change', function(e) {
    const file = e.target.files[0];
    SDKRequest.uploadAttachment(file).then((res) => {
        console.log(res)
    })
});
